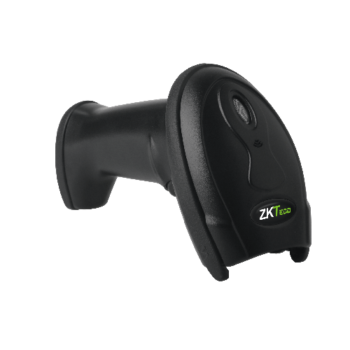

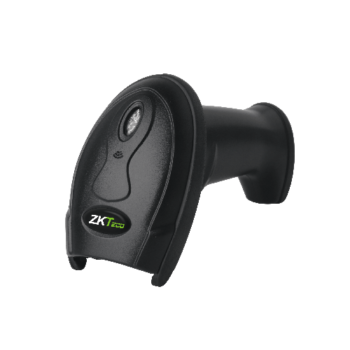

ZKB201 Hand Held Barcode Scanner
ZKB201 is an economical two-dimensional scanning scanner with simple integration, stable performance, and fast scanning speed. It also supports manual trigger and automatic continuous scanning mode.
Prices are subjected to change based on the time of purchase given the current economic situation within the country
Original price was: LKR25,000.00.LKR13,702.50Current price is: LKR13,702.50.
General
Weight: 160g (without wire)
Dimensions (L×W×H): 175mm × 72mm × 100mm
Wire length: 1.8m
Interface type: Standard USB (Full Speed ,USB 2.0)
Material: ABS+PC
Color: Black
User indicators: LED, buzzer
Scanning Performance
Light source: Visible laser diode, wavelength: 525nm
Image Sensor: 640×480 CMOS
Processor: ARM32-bit
Startup time: 4s
Analytical ability: 1D: ≥5mil; 2D: ≥8.7mil @PCS90%
Depth of focus: 5mil: 50~130mm;13mil: 50~270mm
Scanning mode: Manual scanning, automatic scanning
Reading angle: Roll: ±360°; Pitch: ±60° (or greater); Yaw: ±70° (or greater)
Field of view: Horizontal 40°, Vertical 30°
Motion tolerance: 2.3m/s
Input power: 160mA @ 5V DC
Light levels: 70000Lux
Decode capabilities: 1D: Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded 2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec
Environmental
Operating temperature: -20°C to 55°C
Storage temperature: -20°C to 60°C
Relative humidity: 5% to 95% (non-condensing)
Protection level: IP54
Drop Test: 1.8m, 100times
High and low-temperature test: Work properly for 30 minutes under simulation of temperature of -20°C and 60°C
Transport vibration test: 10H@125RPM
